115 Series Reinforced Aluminum Glass Railing System| JIMEI Glass Railing Profile

Highlights：

Specifications: 115 mm (H) x 103mm (W), with both inner and outer wall thicknesses of 3.0mm – an ultra-wide reinforced base delivering exceptional structural rigidity and load-bearing capacity.

Precision Groove: 19 mm precision-machined slot perfectly fits 6+6 or 8+8 laminated tempered glass.

Adjustable Glass Clips: Accommodates slight glass thickness tolerances, ensuring centered and stable installation with reduced stress points.

Comprehensive Protection: Top decorative cover and sealing strips provide dustproof and waterproof protection, enhancing durability and aesthetics.

Flexible Installation: Supports both Embedded (Pre-installed) and Surface-Mounted methods.

Secure Hardware: Fixed with high-strength hex socket expansion bolts for simple, precise, and clean installation – the concealed fastening design enhances both aesthetic purity and long-term durability.

Description：

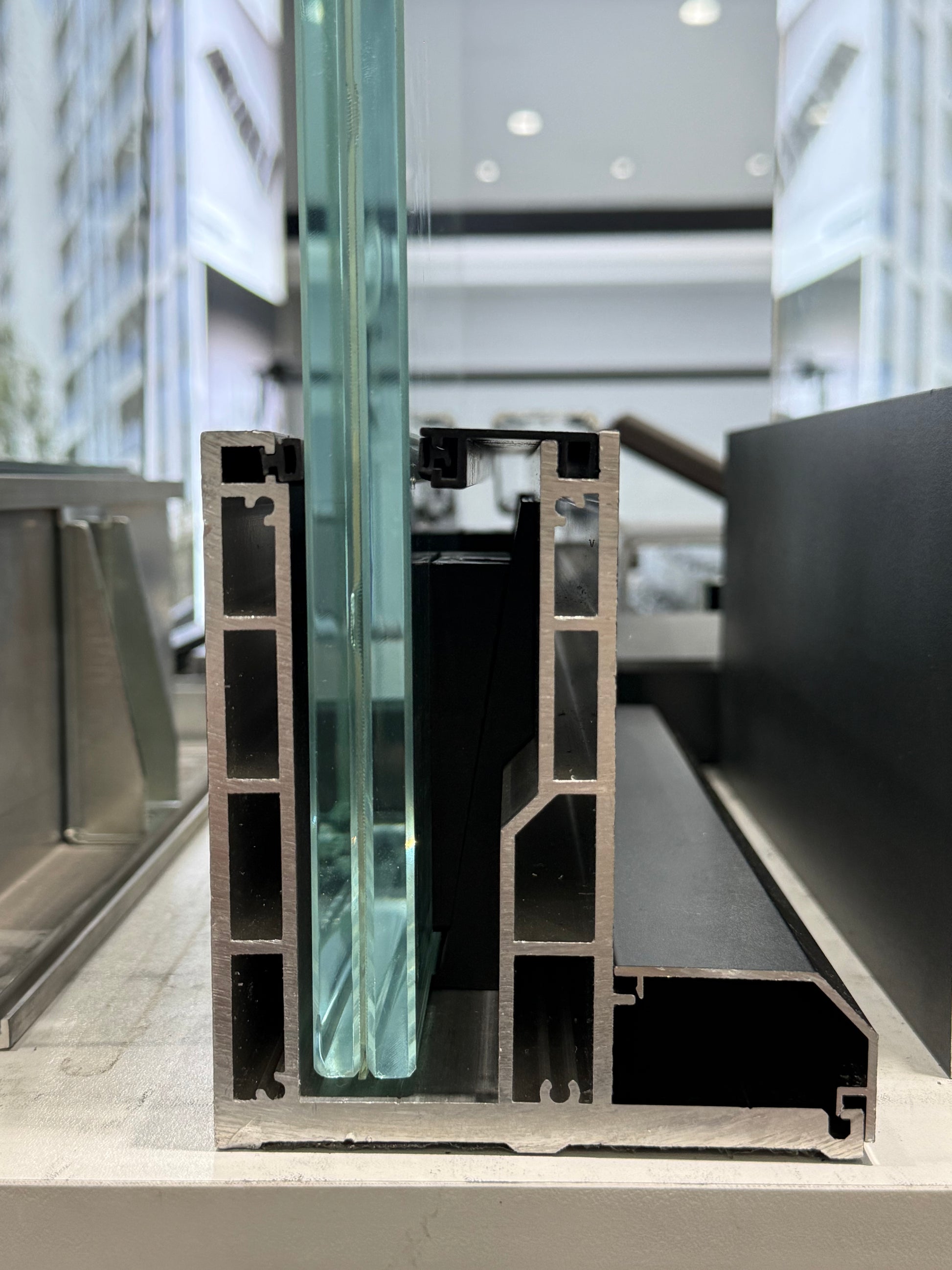

115x103mm Reinforced Surface-Mount Aluminum Glass Railing System

Engineered for the discerning architect and homeowner, the JIMEI ALU 115 Series Reinforced Surface-Mount Aluminum Glass Railing System features an ultra-wide reinforced base channel measuring 115mm in height and 103mm in width, with both inner and outer walls measuring 3.0mm thick. This configuration delivers exceptional impact resistance and load-bearing capacity while achieving a lightweight profile and refined appearance. The 103mm ultra-wide base provides superior ground grip and overturning resistance – particularly critical for surface-mounted applications where stability and safety are paramount. The system is thoughtfully equipped with adjustable glass clips, a top decorative cover, and sealing strips – seamlessly blending structural integrity with architectural aesthetics. It is the ideal choice for premium residential and commercial projects.

Application Scenarios：

Residential Spaces: Villa staircases, duplex mezzanines, viewing platforms, and rooftop terraces – elevating the sense of luxury and sophistication.

Commercial Spaces: High-end showroom railings, hotel lobbies and spiral staircases, office partitions – blending light and structure using modern architectural language.

Public Architecture: Museum corridors, glass walkway railings, and commercial complexes – where safety and aesthetics coexist.

Installation Methods：

The system offers two flexible installation solutions to accommodate different substrate conditions：

Embedded Installation (Pre-installed): The 115 reinforced base channel is pre-fixed into the structural layer before concrete pouring or stone paving. This method ensures the finished floor is flush with the railing base, with the top decorative cover creating a seamless transition to the flooring for a concealed, monolithic appearance. The 103mm ultra-wide base bonds firmly with the structural layer, providing the strongest anchoring force against impact – the top choice for high-rise buildings and public projects.

Surface-Mounted Installation: Ideal for finished floors or renovation projects. The base channel is directly fixed to the hard surface using the supplied high-strength hex socket expansion bolts. This method allows for quick installation without damaging existing flooring. The 103mm ultra-wide base provides a larger contact area and enhanced stability in surface-mounted applications, ensuring the railing system remains steady and secure over long-term use. Once installed, the top decorative cover perfectly conceals all screws and mounting marks, ensuring a clean, unified appearance while providing easy access for future maintenance.

Adjustable Glass Clips：

This system features adjustable glass clips that accommodate slight glass thickness tolerances, ensuring the glass remains perfectly centered and securely fixed while reducing stress points and enhancing installation flexibility. This design significantly reduces installation complexity and improves construction efficiency.

Comprehensive Protection Design：

The system includes a top decorative cover and high-quality sealing strips that combine aesthetics with functionality – the cover creates a clean, crisp visual finish, while the sealing strips effectively prevent dust, water, and debris ingress, protecting internal components and extending the system's service life. This is particularly essential for outdoor and humid environments.

Glass Compatibility & Safety Features：

The system's 19mm groove readily accommodates 6+6mm or 8+8mm laminated tempered glass. The channel includes high-elasticity cushioning pads and dedicated glass-clamping plates. These not only ensure the glass remains perfectly vertical and secure but also provide shock absorption, vibration damping, and noise prevention. Combined with laminated glass offering high safety standards, explosion resistance, and crystal-clear transparency, the railing system maintains quiet, safe, and reliable operation over the long term.

Specifications：

Brand: JIMEI ALU

Profile Height：115mm

Profile Width：103mm

Wall Thickness: 3.0 mm (both inner and outer walls)

Glass Slot Size: 19 mm

Glass Compatibility：6+6 Laminated / 8+8 Laminated Tempered Glass

Fixing Method: Hex Socket Expansion Bolts (Included)

Special Features: Adjustable Glass Clips, Top Decorative Cover, Sealing Strips

Installation Options: Surface-mounted / Embedded

Material: High-Grade Aluminum Alloy (Anti-corrosion)

Inclusions: Reinforced Base Channel, Adjustable Glass Clips, Elastic Pads, Top Cover, Sealing Strips, Hex Bolt
