105 Series Heavy-Duty Aluminum Glass Railing System | JIMEI Glass Railing Profile

Highlights：

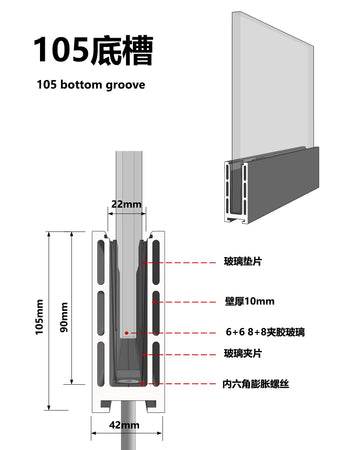

Specifications: 105 mm (H) x 42mm (W), 10.0mm wall thickness for extreme heavy-duty performance.

Precision Groove: 22 mm slot perfectly fits 6+6 or 8+8 laminated tempered glass.

Superior Strength: 10 mm ultra-thick profile delivers exceptional impact and torsion resistance, ideal for high-safety environments.

Flexible Installation: Supports both Embedded (Pre-installed) and Surface-Mounted methods.

Secure Hardware: Comes standard with Hex Head Expansion Bolts and anti-vibration pads for stability and noise reduction.

Description：

105x42mm Heavy-Duty Aluminum Glass Railing System

Engineered for modern high-end spaces demanding the utmost in safety and structural integrity, this 105-series heavy-duty aluminum glass railing system from JIMEI ALU features a reinforced base channel with a 105mm height and 42mm width, combined with a 10mm ultra-thick wall profile. This design delivers exceptional impact resistance, torsion resistance, and load-bearing capacity that far exceeds standard railings, making it the ideal choice for large-scale public buildings and premium residential projects.

Application Scenarios：
This system is particularly suited for large shopping mall atriums, airport terminals, convention centers, sports venues, high-rise building balconies, hotel lobby mezzanines, museum exhibition halls, and landscape bridge railings – any environment with high pedestrian traffic or elevated safety requirements. The substantial texture combined with minimalist lines conveys a sense of reliable security while maintaining the transparent aesthetic of modern architecture.

Installation Methods：
The system offers two flexible installation solutions to accommodate different substrate conditions：
Embedded Installation (Pre-installed): The 105 base channel is pre-fixed into the structural layer before pouring concrete or laying stone paving. This method ensures the finished floor is flush with the railing base, achieving a concealed, seamless appearance. The 10mm wall thickness bonds firmly with the structural layer, providing the strongest anchoring force against impact – the top choice for high-rise buildings and public projects.

Surface-Mounted Installation: Ideal for finished floors or renovation projects. The base channel is directly fixed to the hard surface using the supplied Hex Head Expansion Bolts. This method allows for quick installation without damaging existing flooring. The 10mm wall thickness ensures exceptional stability and deformation resistance even in surface-mounted applications, while providing easy access for future maintenance.

Glass Compatibility & Safety Features：
The system's 22mm groove readily accommodates 6+6mm or 8+8mm laminated tempered glass. The channel includes high-elasticity cushioning pads and dedicated glass-clamping plates. These not only ensure the glass remains perfectly vertical and secure but also provide shock absorption, vibration damping, and noise prevention. Even in high-traffic areas such as airports and shopping malls, the railing system maintains quiet, safe, and reliable operation over the long term.
Specifications：

Brand: JIMEI ALU

Profile Height：105mm

Profile Width：42mm

Wall Thickness：10.0mm

Glass Groove：22mm

Compatible Glass：6+6 / 8+8 Laminated Safety Glass

Mounting Hardware: Hex Head Expansion Bolts (Included)

Installation Type: Embedded / Surface-Mounted
