110 Series Reinforced Dual-Cover Aluminum Glass Railing System | JIMEI Glass Railing Profile

Highlights：

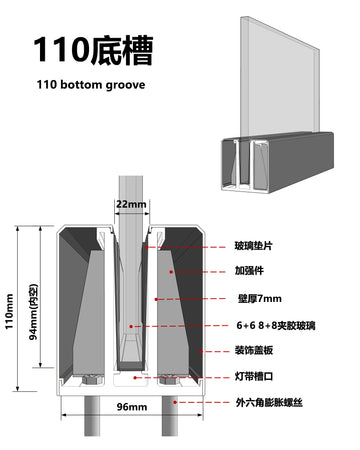

Specifications: 110 mm (H) x 96mm (W), 7.0mm wall thickness with reinforced dual-cover design for maximum structural strength.

Precision Groove: 22 mm slot perfectly fits 6+6 or 8+8 laminated tempered glass.

Exclusive Reinforcing Bracket: Proprietary fixing bracket significantly enhances connection rigidity and impact resistance between glass and base.

Dual-Cover Design: The decorative panels on both sides are installed to perfectly conceal all the installation hardware, presenting a refined and seamless appearance.

Ambient Upgrade: Integrated LED strip groove for stunning floating light effects.

Flexible Installation: Supports both Embedded (Pre-installed) and Surface-Mounted methods.

Secure Hardware: Fixed with hex socket expansion bolts for simple, precise, and clean installation.

Description：

110x96mm Reinforced Dual-Cover Aluminum Glass Railing System

Engineered for modern high-end spaces demanding ultimate safety, visual refinement, and design flexibility, this 110-series reinforced dual-cover aluminum glass railing system from JIMEI ALU features an ultra-wide reinforced base channel with a 110mm height and 96mm width, combined with a 7.0mm wall thickness and a dual-cover structure. This design delivers exceptional impact resistance, torsion resistance, and load-bearing capacity. Equipped with an exclusive proprietary reinforcing bracket, it ensures an unprecedented level of connection rigidity between glass and base – making it the ideal choice for large-scale public buildings, high-end commercial spaces, and premium residential projects.

Application Scenarios：

Residential Spaces: Villa staircases, duplex mezzanines, viewing platforms, rooftop terraces, elevating the sense of luxury and sophistication.

Commercial Spaces: High-end showroom railings, hotel lobbies and spiral staircases, flagship store partitions, blending light and structure in a modern architectural language.

Public Architecture: Museum corridors, glass walkway railings, airport terminals, convention centers, where safety and aesthetics coexist.

Installation Methods：

The system offers two flexible installation solutions to accommodate different substrate conditions：

Embedded Installation (Pre-installed)：The 110 reinforced base channel is pre-fixed into the structural layer before concrete pouring or stone paving. This method ensures the finished floor is flush with the railing base, with the dual covers seamlessly integrating with the flooring for a concealed, monolithic appearance. The 96mm ultra-wide base, combined with the exclusive reinforcing bracket, bonds firmly with the structural layer, providing the strongest anchoring force against impact – the top choice for high-rise buildings and public projects.

Surface-Mounted Installation: Ideal for finished floors or renovation projects. The base channel is directly fixed to the hard surface using the supplied hex socket expansion bolts. This method allows for quick installation without damaging existing flooring. Once installed, the upper and lower decorative covers perfectly conceal all screws and mounting marks, ensuring a clean, unified appearance while providing easy access for future maintenance.

Exclusive Reinforcing Bracket：

This system features JIMEI ALU's proprietary reinforcing bracket, crafted from high-strength metal with a precision-engineered structure that creates a multi-point locking mechanism between the glass and base channel. This unique design significantly enhances lateral impact resistance, ensuring the glass remains stable and secure even in high-traffic areas or strong wind conditions – providing dual-layer protection for your safety.

Ambient Lighting Upgrade (Optional)：

The system features a specially reserved LED strip channel, allowing you to install waterproof lighting as desired. When light emanates from beneath the glass, it creates a floating, glowing effect with hidden light sources, dramatically enhancing the sense of luxury and artistic ambiance. This feature is particularly ideal for high-end hotels, showrooms, and villa projects.

Glass Compatibility & Safety Features：

The system's 22mm groove readily accommodates 6+6mm or 8+8mm laminated tempered glass. The channel is equipped with high-elasticity cushioning pads and dedicated glass-clamping plates. These not only ensure the glass remains perfectly vertical and secure but also provide shock absorption, vibration damping, and noise prevention. Combined with laminated glass offering safety, explosion resistance, and perfect transparency, the railing system maintains quiet, safe, and reliable operation over the long term – even in high-traffic areas such as airports and shopping malls.

Specifications：

Brand: JIMEI ALU

Model: 110x96 Reinforced Base Channel Type

System Type: Aluminum Glass Railing with LED Groove

Profile Height：110mm

Profile Width：96mm

Wall Thickness：7.0mm

Glass Slot Size: 22 mm

Glass Compatibility：6+6 Laminated / 8+8 Laminated Tempered Glass

Fixing Method: Hex Socket Expansion Bolts (External)

Special Feature: Exclusive Reinforcing Bracket

Lighting Option: Integrated LED strip groove for linear lighting

Installation Options: Surface-mounted / Embedded

Material: High-Grade Aluminum Alloy (Anti-corrosion)

Inclusions: Base Channel, LED Groove, Clamping Plates, Elastic Pads, Hex Bolt
