125 Series Aluminum Glass Railing System | JIMEI Glass Railing Profile

Highlights：

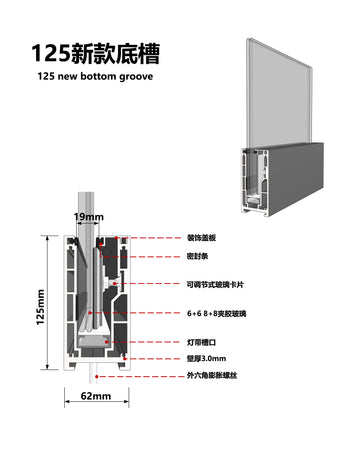

Specifications: 125 mm (H) x 62mm (W), with both inner and outer wall thicknesses of 3.0mm for balanced strength and lightweight design.

Precision Groove: 19 mm slot perfectly fits 6+6 or 8+8 laminated tempered glass.

Adjustable Glass Clips: Flexible adjustment mechanism accommodates various glass thicknesses, ensuring centered and stable installation with ease.

Comprehensive Protection: Top decorative cover and sealing strips provide dustproof and waterproof protection, enhancing durability and aesthetics.

Ambient Upgrade: Integrated LED strip groove for stunning floating light effects.

Flexible Installation: Supports both Embedded (Pre-installed) and Surface-Mounted methods.

Secure Hardware: Fixed with hex socket expansion bolts for simple, precise, and clean installation.

Description：

125x62mm Aluminum Glass Railing System

Engineered for modern high-end spaces that demand the ultimate in design language and structural safety, this 125-series aluminum glass railing system from JIMEI ALU features a reinforced base channel with a 125mm height and 62mm width, with both inner and outer walls measuring 3.0mm thick. This design delivers exceptional impact resistance and load-bearing capacity while achieving a lightweight profile and refined appearance. Equipped with adjustable glass clips, a top decorative cover, and sealing strips, this system is the ideal choice for premium residential and commercial projects.

Application Scenarios：

Residential Spaces: Villa staircases, duplex mezzanines, viewing platforms, rooftop terraces – elevating the sense of luxury and sophistication.

Commercial Spaces: High-end showroom railings, hotel lobbies and spiral staircases, office partitions – blending light and structure in a modern architectural language.

Public Architecture: Museum corridors, glass walkway railings, commercial complexes – where safety and aesthetics merge seamlessly.

Installation Methods：

The system offers two flexible installation solutions to accommodate different substrate conditions：

Embedded Installation (Pre-installed): The 125 base channel is pre-fixed into the structural layer before pouring concrete or laying stone paving. This method ensures the finished floor is flush with the railing base, with the top decorative cover creating an elegant transition to the flooring for a concealed, monolithic appearance – the top choice for high-end minimalist projects.

Surface-Mounted Installation: Ideal for finished floors or renovation projects. The base channel is directly fixed to the hard surface using the supplied hex socket expansion bolts. This method allows for quick installation without damaging existing flooring. Once installed, the top decorative cover perfectly conceals all mounting marks, ensuring a clean, unified appearance while providing easy access for future maintenance.

Adjustable Glass Clips：

This system features adjustable glass clips with a precision threaded adjustment mechanism that flexibly accommodates different laminated glass thicknesses, ensuring the glass remains perfectly centered and securely fixed. This design significantly reduces installation complexity, improves construction efficiency, and guarantees long-term vertical alignment and stability.

Comprehensive Protection Design：

The system includes a top decorative cover and high-quality sealing strips that combine aesthetics with functionality – the cover creates a clean, crisp visual finish, while the sealing strips effectively prevent dust, water, and debris ingress, protecting internal components and extending the system's service life. This is particularly essential for outdoor and humid environments.

Ambient Lighting Upgrade (Optional)：

The system features a specially reserved LED strip channel, allowing you to install waterproof lighting as desired. When light emanates from beneath the glass, it creates a floating, glowing effect with hidden light sources, dramatically enhancing the sense of luxury and artistic ambiance. This feature is particularly ideal for high-end hotels, showrooms, and villa projects.

Glass Compatibility & Safety Features：

The system's 19mm groove readily accommodates 6+6mm or 8+8mm laminated tempered glass. The channel includes high-elasticity cushioning pads and dedicated glass-clamping plates. These not only ensure the glass remains perfectly vertical and secure but also provide shock absorption, vibration damping, and noise prevention. Combined with laminated glass offering safety, explosion resistance, and perfect transparency, the railing system maintains quiet, safe, and reliable operation over the long term.

Specifications：

Brand: JIMEI ALU

Profile Height：125mm

Profile Width：62mm

Wall Thickness: 3.0 mm (both inner and outer walls)

Glass Slot Size: 19 mm

Glass Compatibility：6+6 Laminated / 8+8 Laminated Tempered Glass

Fixing Method: Hex Socket Expansion Bolts (External)

Special Features: Adjustable Glass Clips, Top Decorative Cover, Sealing Strips

Lighting Option: Integrated LED strip groove for linear lighting

Installation Options: Surface-mounted / Embedded

Material: High-Grade Aluminum Alloy (Anti-corrosion)

Inclusions: Base Channel, LED Groove, Adjustable Glass Clips, Elastic Pads, Top Cover, Sealing Strips, Hex Bolt
