90 Series Dual-Cover Aluminum Glass Railing System | JIMEI Glass Railing Profile

Highlights ：

Specifications: 90 mm (H) x 80mm (W), 6.0mm wall thickness with dual-cover design for enhanced rigidity.

Precision Groove: 18 mm slot perfectly fits 6+6 or 8+8 laminated tempered glass.

Ambient Upgrade: Built-in channel for LED strip lighting to create stunning floating light effects.

Flexible Installation: Supports both Embedded (Pre-installed) and Surface-Mounted methods.

Secure Hardware: Comes standard with Hex Head Expansion Bolts and anti-vibration pads for stability and noise reduction.

Description：

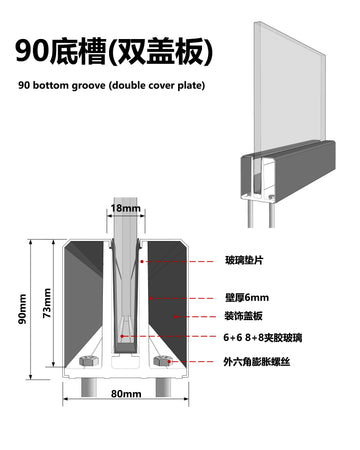

90x80mm Dual-Cover Aluminum Glass Railing System

Engineered for modern high-end commercial and minimalist residential projects, this 90-series dual-cover aluminum glass railing system from JIMEI ALU features a reinforced base channel with a 90mm height and 80mm width, paired with a 6.0mm wall thickness and a dual-cover structure. This design significantly enhances torsional strength and load-bearing capacity, providing superior protection for glass panel installations.

Application Scenarios：
This system is widely applicable in villa staircases, duplex mezzanines, viewing platforms, showroom railings, hotel staircases, office partitions, museum corridors, and glass walkway railings. Whether for the understated luxury of private residences or the safety requirements of public architecture, this product seamlessly combines minimalist lines with transparent glass to achieve a perfect balance of function and aesthetics.

Installation Methods：
The system offers two flexible installation solutions to accommodate different substrate conditions：

Embedded Installation (Pre-installed): The 90 base channel is pre-fixed into the structural layer before concrete pouring or stone paving. This method ensures the finished floor is flush with the railing base, revealing only the glass and metal cover plates for a concealed, seamless appearance – the preferred choice for high-end minimalist projects.

Surface-Mounted Installation：Ideal for finished floors or renovation projects. The base channel is directly fixed to the hard surface using the supplied Hex Head Expansion Bolts. This method allows for quick installation without damaging existing flooring. The dual-cover design perfectly conceals all screws and mounting marks, ensuring a clean, polished look while providing easy access for future maintenance.

Ambient Lighting Upgrade (Optional)：
This system features a specially reserved LED strip channel, allowing you to install waterproof lighting as desired. When light emanates from beneath the glass, it creates a floating, glowing effect with hidden light sources, dramatically enhancing the sense of luxury and artistic ambiance. This feature is particularly ideal for high-end hotels, showrooms, and villa projects.

Glass Compatibility & Safety Features：
The system's 18mm groove readily accommodates 6+6mm or 8+8mm laminated tempered glass. The channel includes high-elasticity cushioning pads and dedicated glass-clamping plates. These not only keep the glass perfectly vertical and secure but also provide shock absorption, vibration damping, and noise prevention, ensuring a quiet, safe railing even in high-traffic areas.

Specifications：

Brand: JIMEI ALU

Profile Height：90mm

Profile Width：80mm

Wall Thickness：6.0mm

Glass Groove：18mm

Compatible Glass：6+6 / 8+8 Laminated Safety Glass

Lighting Option: LED Strip (Installation channel reserved)

Mounting Hardware: Hex Head Expansion Bolts (Included)

Installation Type: Embedded / Surface-Mounted
