Product description
Description：
90x62mm Heavy-Duty Aluminum Glass Railing System
Designed for modern high-end commercial and minimalist residential projects, this 90-series aluminum glass railing system from JIMEI ALU features a reinforced base channel with a 90mm height and 62mm width, paired with a 6.0mm wall thickness. This robust construction provides unparalleled rigidity, stability, and load-bearing capacity for glass panel installations.
Application Scenarios：
This system is widely applicable in shopping mall atriums, villa balconies, hotel lobbies, staircases, pool surrounds, and office partitions. Whether you need an unobstructed view for a public area or a clean, linear aesthetic for private residences, this profile seamlessly integrates architectural structure with the transparency of glass.
Installation Methods：
The system offers two flexible installation solutions to accommodate different substrate conditions：
Embedded Installation (Pre-installed): The 90 base channel is pre-fixed into the structural layer before pouring concrete or laying stone paving. This method ensures the finished floor is flush with the railing base, achieving a concealed, monolithic look where only the glass and minimal metal lines are visible – the top choice for ultra-minimalist projects.
Surface-Mounted Installation: Ideal for finished floors or renovation projects. The base channel is directly fixed to the hard surface using the supplied Hex Head Expansion Bolts. This method allows for quick installation without damaging existing flooring and provides easy access for future maintenance.
Glass Compatibility & Safety Features：
The system’s 22mm groove readily accommodates 6+6mm or 8+8mm laminated tempered glass. The channel includes high-elasticity cushioning pads and dedicated glass-clamping plates. These not only keep the glass perfectly vertical and secure but also provide shock absorption, vibration damping, and noise prevention, ensuring a quiet, safe railing even in high-traffic areas.

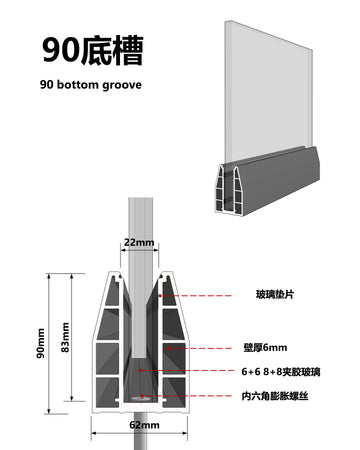

Technical Specifications：
Brand: JIMEI ALU
Profile Height：90mm
Profile Width：62mm
Wall Thickness：6.0mm
Glass Groove：22mm
Compatible Glass：6+6 / 8+8 Laminated Safety Glass
Mounting Hardware: Hex Head Expansion Bolts (Included)
Installation Type: Embedded / Surface-Mounted
